Transmission

G-Force 5 Speed with 3.022 1st, 2.008 2nd, 1.431 3rd, 1.196 4th, and 1.00 5th.

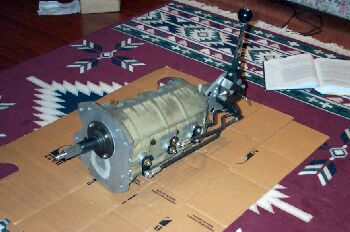

The transmission is a G-Force 5 Speed - A synchroless (dog tooth engagement), straight cut gear transmission. Used in road racing, NASCAR and drag racing (with V-Gate shifter). Very high torque ratings, 800-1000 ft lb., endless gear selection. Uses the Richmond case design so can use a regular toploader style bellhousing. G-Force is made by Long Shifters who are known for their racing shifters. Cost is about $5200 with shifter. The transmission was ordered with the magnesium case option. Total weight is approximately 100 lb, 95 lb without shifter.

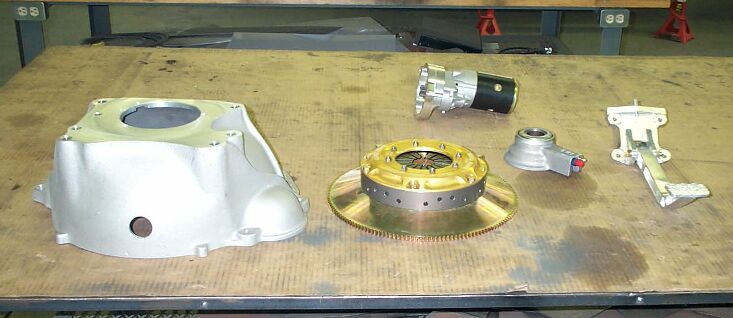

This is the Quarter Master Ford Pro Series 7.25" racing clutch kit (minus the pedal). Includes starter, bellhousing, hydraulic release bearing, fly wheel and clutch. The pedal is a Tilton unit. Cost for the clutch kit was about $2000 US.

Get in contact with G-Force:
http://www.g-forcetransmissions.com
phone:717 - 867 - 4352 Ask for Mike Long, Tell him you found the number on Carter Engineering's web page.

The tables below show the percent change and RPM drop after a shift based on 7000 RPM shift

Gear	Ratio	% Change	MPH@ 6500 RPM	MPH@7000 RPM	RPM After Shift
Rear			3	3	3
1st	3.02		56.88851371	61.26455322
2nd	2.008	33.50993377	85.55941802	92.14091172	4654.304636
3rd	1.431	28.73505976	120.058219	129.2934666	4988.545817
4th	1.196	16.42208246	143.6482537	154.6981193	5850.454228
5th	1	16.38795987	171.8033114	185.0189507	5852.842809
65 MPH RPM			2459.207547	2459.207547

Rear			3.5	3.5	3.5
1st	3.02		48.76158318	52.51247419
2nd	2.008	33.50993377	73.33664402	78.97792433	4654.304636
3rd	1.431	28.73505976	102.9070449	110.8229714	4988.545817
4th	1.196	16.42208246	123.1270746	132.598388	5850.454228
5th	1	16.38795987	147.2599812	158.5876721	5852.842809
65 MPH RPM			2869.075472	2869.075472
